Project Description
Interchangeable head and leg segments optionally provide you with full body imaging at your convenience according to the surgical procedure in application. Several surgeons can feel “at ease” with the same table.
Electric actuation of the table top can be upgraded at any time with a simple change of 8 screws in the lifting column. Thanks to the unique ” Modular Thinking ” approach of our engineers, it is never too late to upgrade your table. Whether electric control is needed only for height adjustment, or additionally for Trendlenburg or lateral tilt, it’s all there at your command using a hand held ergonomic remote control or column or wall mounted panel controls.
Battery is always there to back youup in the rare unfortunate event of power failure.

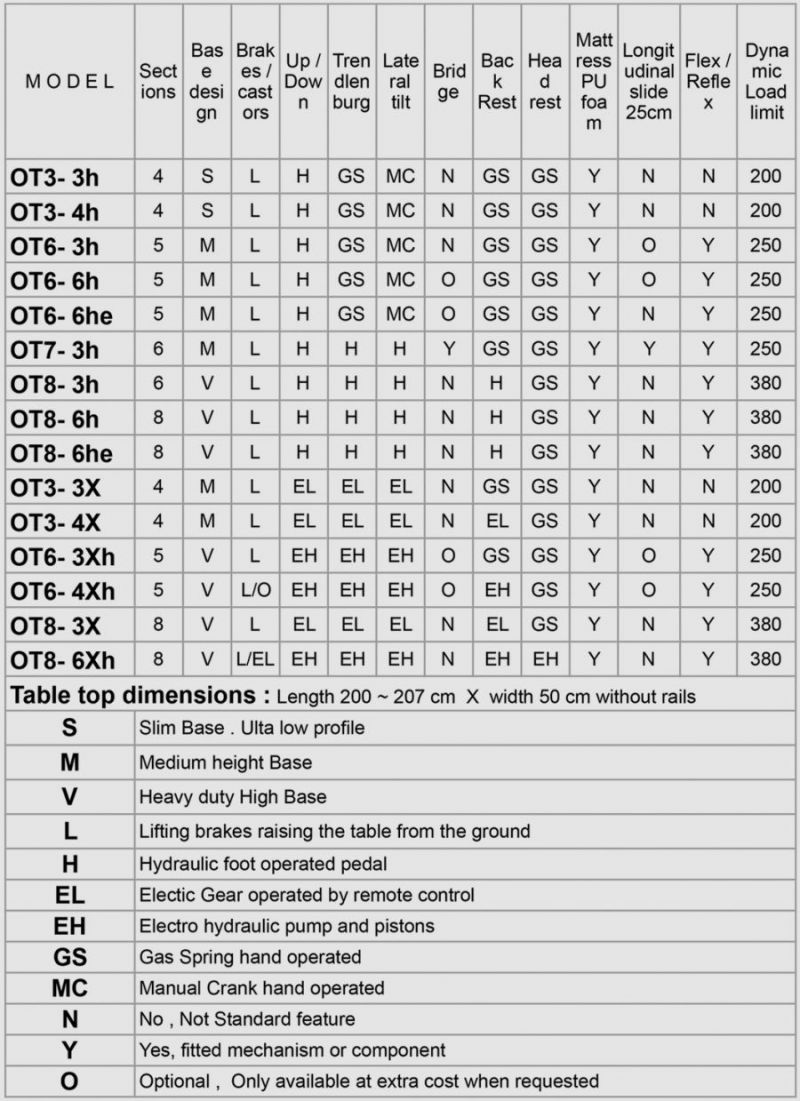

General features of different – OT series operating tables
– BMA OT series of operating tables are factory customizable regarding Minimum and maximum heights.
– Trendlenburg and lateral tilt angles are also factory adjustable within the specified range in Figure 7
– A final Data sheet is issued for each model, showing value for the customizable features for verification.
Features
OT- (series) of operating tables incorporates wide range of electrically operated actuated “X” type Universal side rails for use of accessories and attachment from any source are standard on all OT series of operating tables, matching them to the IEC standards of safety and quality
Table Movement
Height control ( 30 cm travel ) (72—105 CM)
Trendlenburg & reverse (±30 degree)
Lateral tilt &reverse (±25 degree)
Backrest 70 deg. Up & 30 deg. Down
Head rest 25 deg. up / 45 deg. down
Leg 90 deg. Down-removable/detachable-abduct able
Sliding table top
