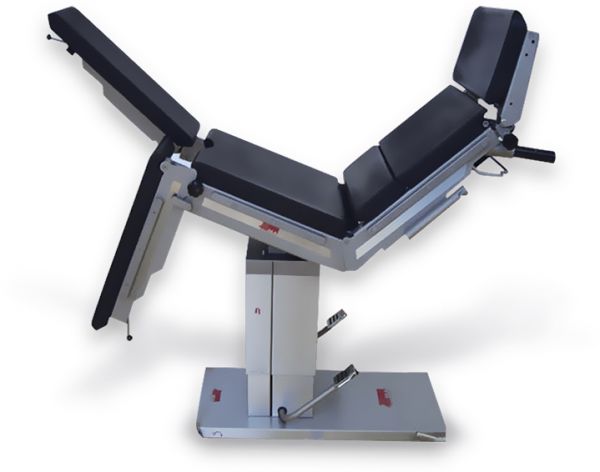

Project Description
Flexion and adoption of an additional bridge can be tailored to suit the most demanding surgical positioning for neurosurgical procedures on the spine, enhanced by excentric column giving room for excellent C-arm imaging along 72% of the table length.
Accessories and side rail extension bars as well as British standard sets are optionally available to match your pre-existing accessories. BMA’s own stainless steel PU foam padded accessories are always at your disposal, and only as per your request. Our custom design office will be glad to realize your innovations.
PU foam mattress with seamless integral design is simply and quickly removed for disinfection and cleaning with most commonly used chemicals. Its antistatic electro-conductive surface is ensured according to the highest standards of safety and durability.

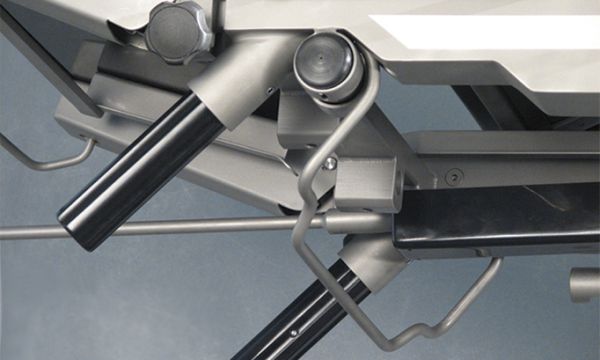

Moving parts are securel.y locked and easily released by gentle handles giving full control at release moment. Your patient is always under control, even with the simplest manual spring load assisted versions.

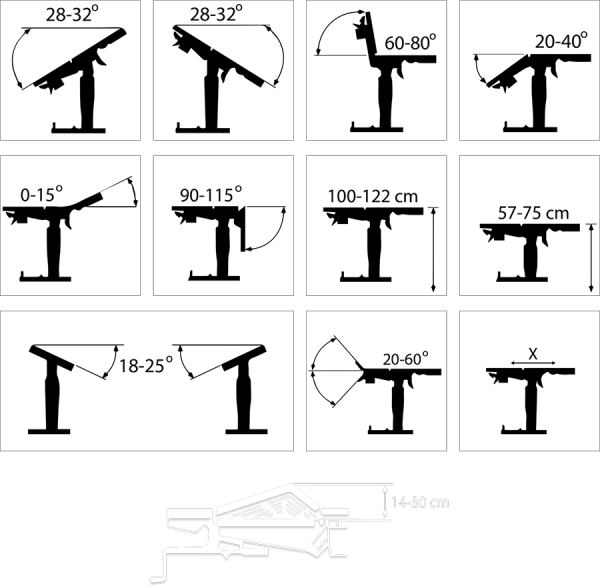

Figures represent permissible range to select by client
for each movement – subject to aproval of combination by BMA

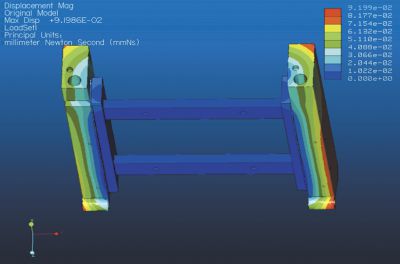

Simulator Displacement of shape under load stress testing
Design and specification are subject to change without notice
Dimensions – Specifications – Movements

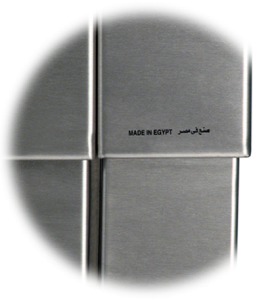

Full table construction made of treated and polished stainless steel , easily and safely disinfected by hospital grade detergents and chemicals.
Table top 5 sections – dimensions : 200 X 50 cm (without side rails)
Covered with electro-conductive anti static , easily detachable PU foam mattress.

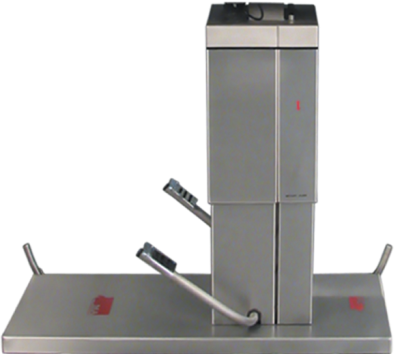

Radio lucent table top with cassette guide along top, and conveniently designed base and column for c-arm accessibility
Height control :
Trendlenburg & reverse :
Lateral tilt &reverse :
Backrest Up & Down :
Split Legs : Standard :
Head rest Up & Down :
Kidney elevation bridge :
safe working load:
Foot operated pedal ( 25cm travel ) (75—100 CM)
Standard : Gas spring assisted (+ / – 25 degree) Optional Hydraulic driven cylinder by foot pump
Standard : Manuak hand crank ( + / – 18 degree) Optional Hydraulic driven cylinder by foot pump
Standard : Gas spring assisted (+75 , – 30 degree)
Standard : Gas spring assisted (+ 10 , – 90 degree) – Detachable – Abductable at 120 degree
Standard : Gas spring assisted (+30 , – 30 degree)
Optional 12 cm – Manual crank operated
250 Kg.
Mobile on antistatic castors with Lifting brakes raising the table
above the ground in operating mode
Universal side rail for clamping all accessories compatible with all clamp size
